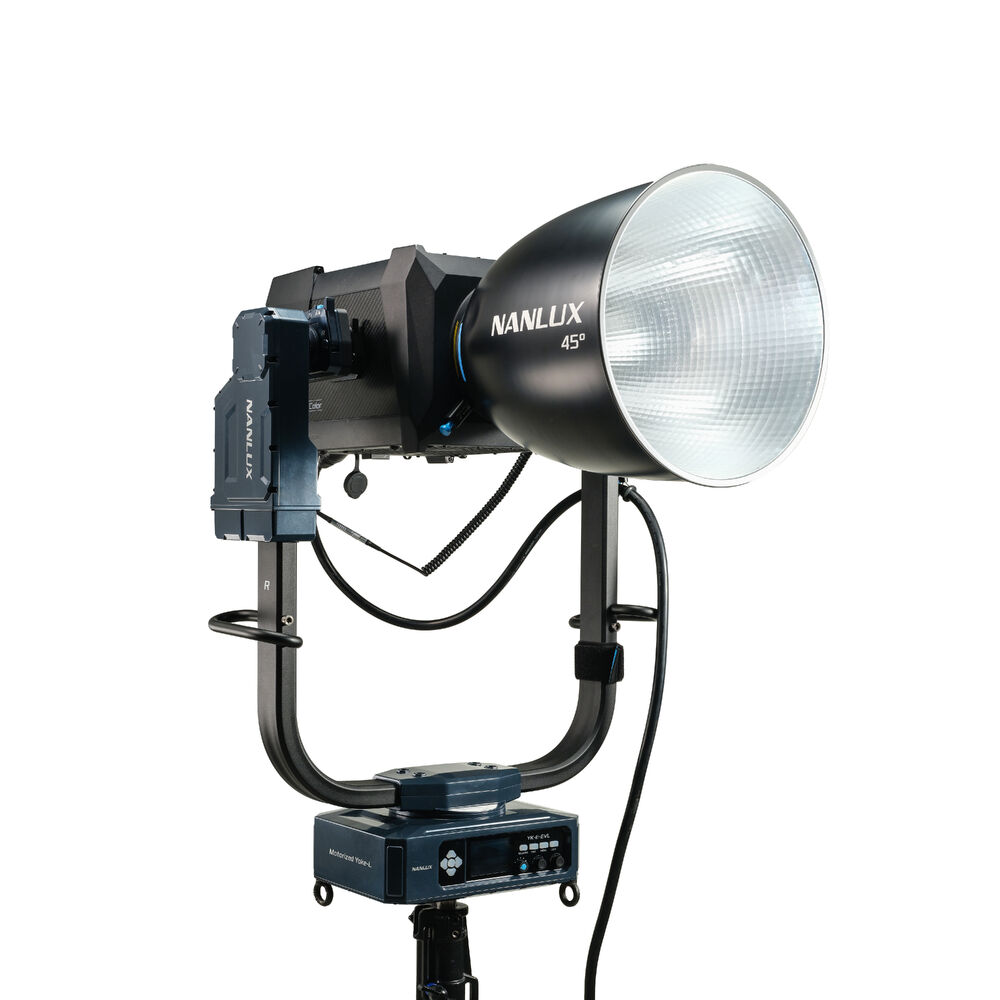

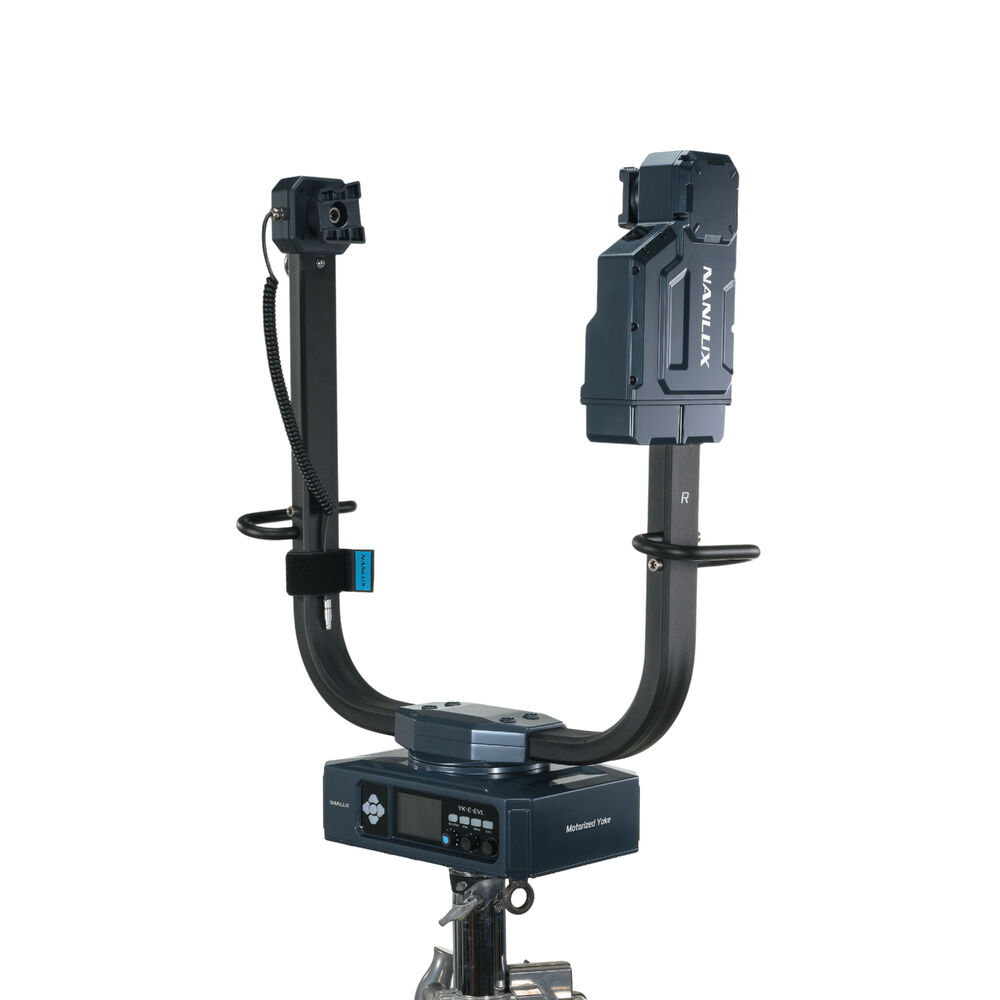

  6. Nanlux YK-E-EVL Motorized Yoke for Evoke 2400B/5000B

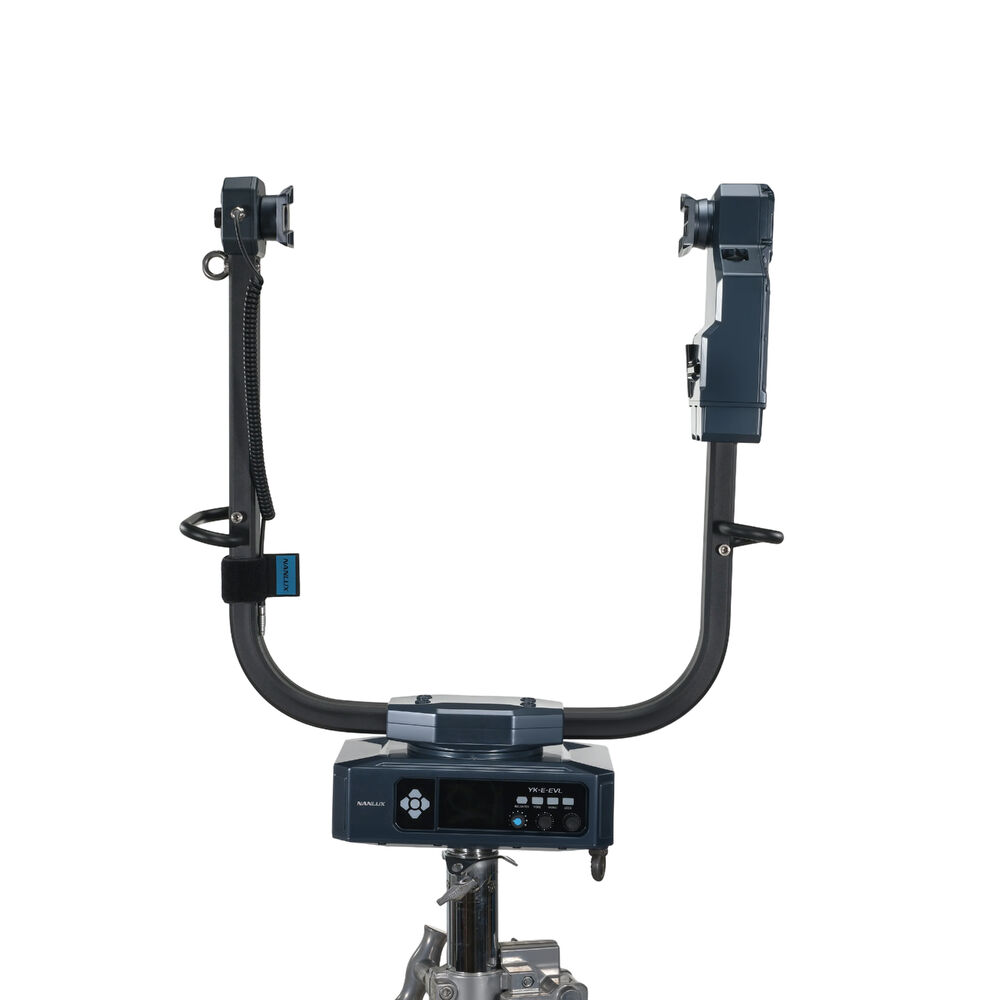

Nanlux YK-E-EVL Motorized Yoke for Evoke 2400B/5000B

Nanlux YK-E-EVL Motorized Yoke for Evoke 2400B/5000B

SKU: NLYKEEVL EAN: 6949987492610


  • Motorised Dual-Axis Precision

    Smooth, remote-controlled pan and tilt adjustments for faster, safer fixture positioning on set.

  • Heavy-Duty, IP66-Rated Construction

    Magnesium alloy build with 40 N·m tilt torque supports large fixtures in demanding outdoor environments.

  • Advanced Multi-Protocol Control

    Compatible with DMX/RDM, Art-Net, sACN, CRMX, NANLINK App, and wired controller systems for seamless integration into professional lighting workflows.


AU$3,532.95
Backorder Available Backorder Available

Calculate Shipping


Notify me when back in stock

Please tick this box to proceed.
  • Description
  • Specifications
  • Reviews

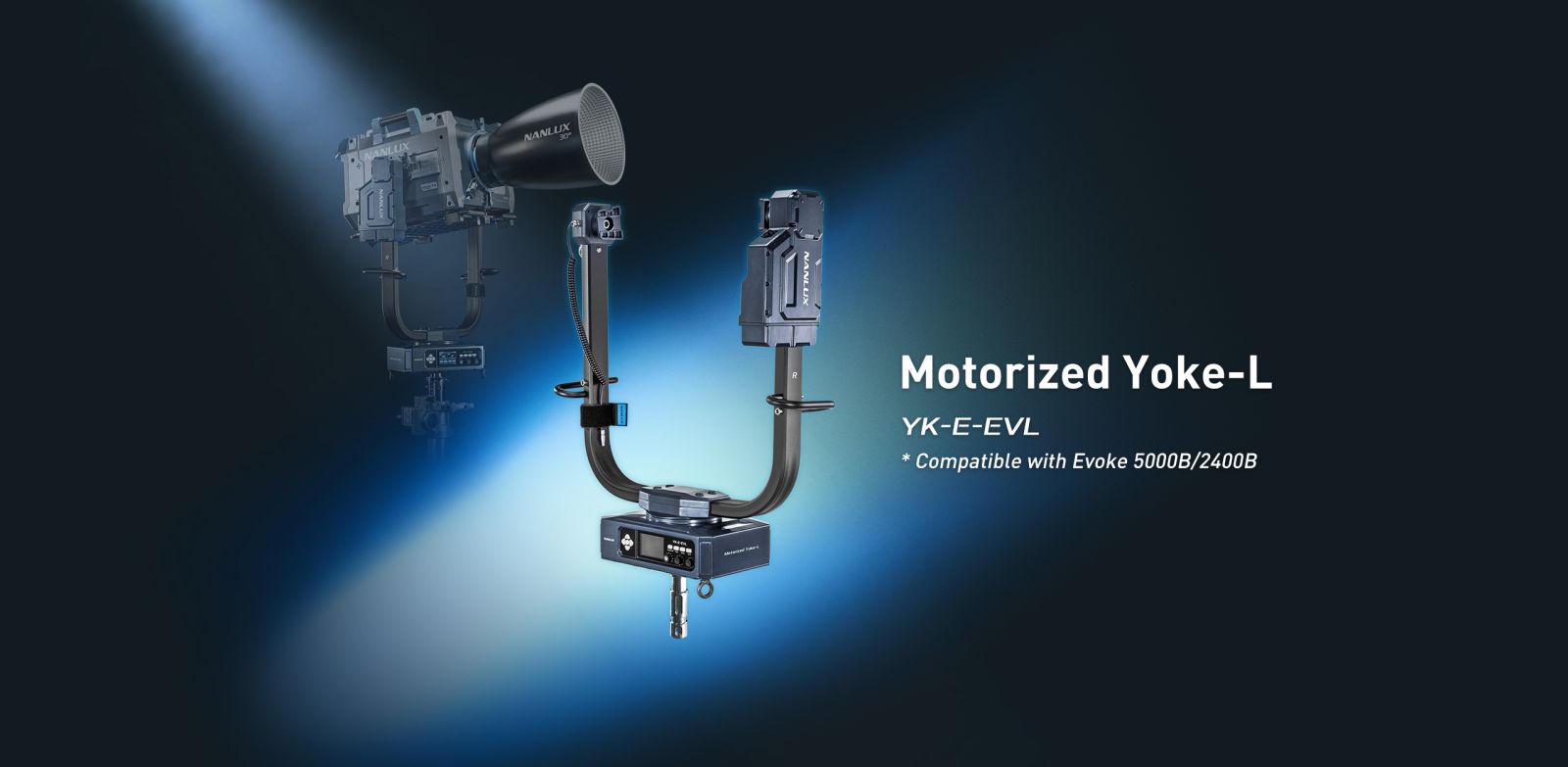

Motorized Yoke-L YK-E-EVL * Compatible with Evoke 5000B/2400BWith the growing demand for more refined lighting in film and television production, higher efficiency, greater creative freedom, and a safer working environment are becoming key priorities on set. To meet these demands, Nanlux has developed this motorized yoke for the Evoke 5000B/2400B, enabling faster, easier, and safer lighting adjustments on set. The motorized yoke allows precise fixture angle adjustment via motors, changing manual operation with remote motorized control. This significantly reduces physical workload while making lighting adjustments more efficient and flexible, and enhances control and safety on set. In addition, the yoke features an IP66 rating, ensuring reliable operation with Evoke 5000B/2400B under any condition.Dual-Axis, Wide-Angle, Stable Movement The motorized yoke features a pan and tilt dual-axis design with ample range on both axes, allowing a wider range of angle adjustments while keeping the fixture in its set position and avoiding frequent repositioning caused by limited adjustment range. While allowing flexible lighting setups, this motorized yoke adjusts angles at a smooth speed, ensuring safe operation.Safe and Reliable with Stable Control This motorized yoke is designed to meet the core needs of professional production, focusing on safe operation and stable control. Magnesium Alloy + IP66 The yoke is made of magnesium alloy, providing excellent payload while maintaining a great balance between strength and weight. It can securely support heavy setups such as the Evoke 5000B paired with FL-45E for long-term use. The entire yoke is rated IP66, allowing reliable operation with Evokes in storm, sand, dust, and other challenging environments.Designed with stability in mind: The tilt axis motor delivers a maximum torque of 40N•m, allowing smooth adjustment even under heavy payload while maintaining the set angle. The internal structure features a self-locking mechanism, which secures the yoke in position after adjustments or when powered off, preventing accidental rotation due to fixture weight. NANLUX Evoke 500C Additionally, in case to handle unusual situation, the motorized yoke's tilt axis provides an option of manual adjustment. Simply use the included T-handle to operate the internal worm gear and adjust the quick release plate to its initial angle, preventing extra effort when detaching the fixtures.Flexible Installation, Quick Setup The motorized yoke supports mounting on the light stand and hanging on the truss, allowing flexible deployment to meet diverse needs on set: NANLUD NANLUX Mounting on the Light Stand For light stand setups, it can be directly installed onto a light stand with a junior pin receiver. Hanging on the Truss For truss setups, it can be installed on trusses up to 60mm in diameter using the included truss adapter.Installing the fixture with the motorized yoke is effortless. When installing the Evoke 5000B, install the yoke's quick release plate into the fixture's quick release plate base, then plug the extension cable into the EXT port on the fixture to complete the installation. VLUX NANLUX Evoke 50008 0 Evoke 5000B NANLUX 45° When installing the Evoke 2400B, the quick release adapters must be installed first. Then connect the yoke's extension cable to the fixture's DMX IN port by using the included DMX adapter cable to complete the installation.Multiple Control Methods The motorized yoke features an integrated control box at its base, combining a control interface, wireless control module, and wired control ports, providing the hardware foundation for on-board control as well as connection with various control systems. Once the fixture and the motorized yoke are connected, the communication will be established, allowing users to control both fixture and yoke parameters through a console or other control devices, simplifying operation on set. On-board Wired Controller DMX/RDM Art-Net&sACN N.. NANLINK NANLINK APP Lumenraalo LumenRadio CRMX Motorized Yoke-L ABlE On-board Control The yoke supports multiple options of angle adjustments and return to center operation, with shortcut buttons for more simplified control. The shortcut buttons allow angle adjustment with one press, while the CENTER button can return the yoke to the preset position (Pan = 0°, Tilt = 0°), making fixture installation and detachment more convenient.Wired Controller Control The motorized yoke can be connected to the WS-EXT wired controller for independent control. Once the motorized yoke establishes communication with a fixture equipped with an EXT port, the wired controller can also be used to control the fixture. 20° " 30° DMX/RDM Control The control box is equipped with two 5-pin XLR ports, DMX IN and DMX OUT, allowing the yoke to connect to lighting control systems via DMX/RDM, and enabling centralized control and management of on-set equipment from the console.Art-Net&sACN Control The control box is equipped with two LAN ports, allowing the yoke to connect to lighting control systems via a wired network, and enabling longer-distance signal transmission compared to XLR cables. NANLINK APP Control The motorized yoke can be added to NANLINK APP 2.0 via Bluetooth, allowing wireless motorized adjustment of the pan and tilt axes. LumenRadio CRMX The yoke can connect to the CRMX ecosystem, providing flexible and reliable wireless DMX control, ideal for setups where running cables is inconvenient and stable control is essential.Flight Case Kit The optional flight case kit includes a flight case, specially designed for frequent transport and challenging on-set conditions. The case is made of aluminum alloy with corner protectors for shock resistance and wheels at the bottom for easier transport.Standard Kit Includes Motorized Yoke-L × 1 AC Power Cable 7.5m x 1 Evoke 2400B Quick-Release Adapter (Left) × 1 Evoke 2400B Quick-Release Adapter (Right) × 1 Evoke 2400B DMX Adapter Cable × 1 Motorized Yoke Truss Adapter × 1 User Manual × 1



Precision Motorised Pan & Tilt Control for Evoke 5000B & 2400B

The Nanlux Motorized Yoke-L (YK-E-EVL) is purpose-built to deliver faster, safer, and more precise fixture positioning for the Evoke 5000B and Evoke 2400B. Designed for modern film and television production, it replaces manual adjustments with smooth, remote-controlled motorised pan and tilt movement—reducing physical workload on set while increasing efficiency and creative flexibility.

Built to handle demanding professional environments, the Motorized Yoke-L features a dual-axis design with wide pan and tilt range, allowing broader angle adjustments without the need for constant fixture repositioning. Movement is smooth and controlled, ensuring safe operation even with heavy payloads.



Built for Heavy-Duty Performance

Constructed from magnesium alloy, the yoke offers an excellent balance of strength and reduced weight, securely supporting large fixtures and modifiers such as the Evoke 5000B with FL-45E Fresnel for long-term operation.

The entire unit is IP66-rated, ensuring reliable performance in rain, dust, sand, and other harsh production environments.

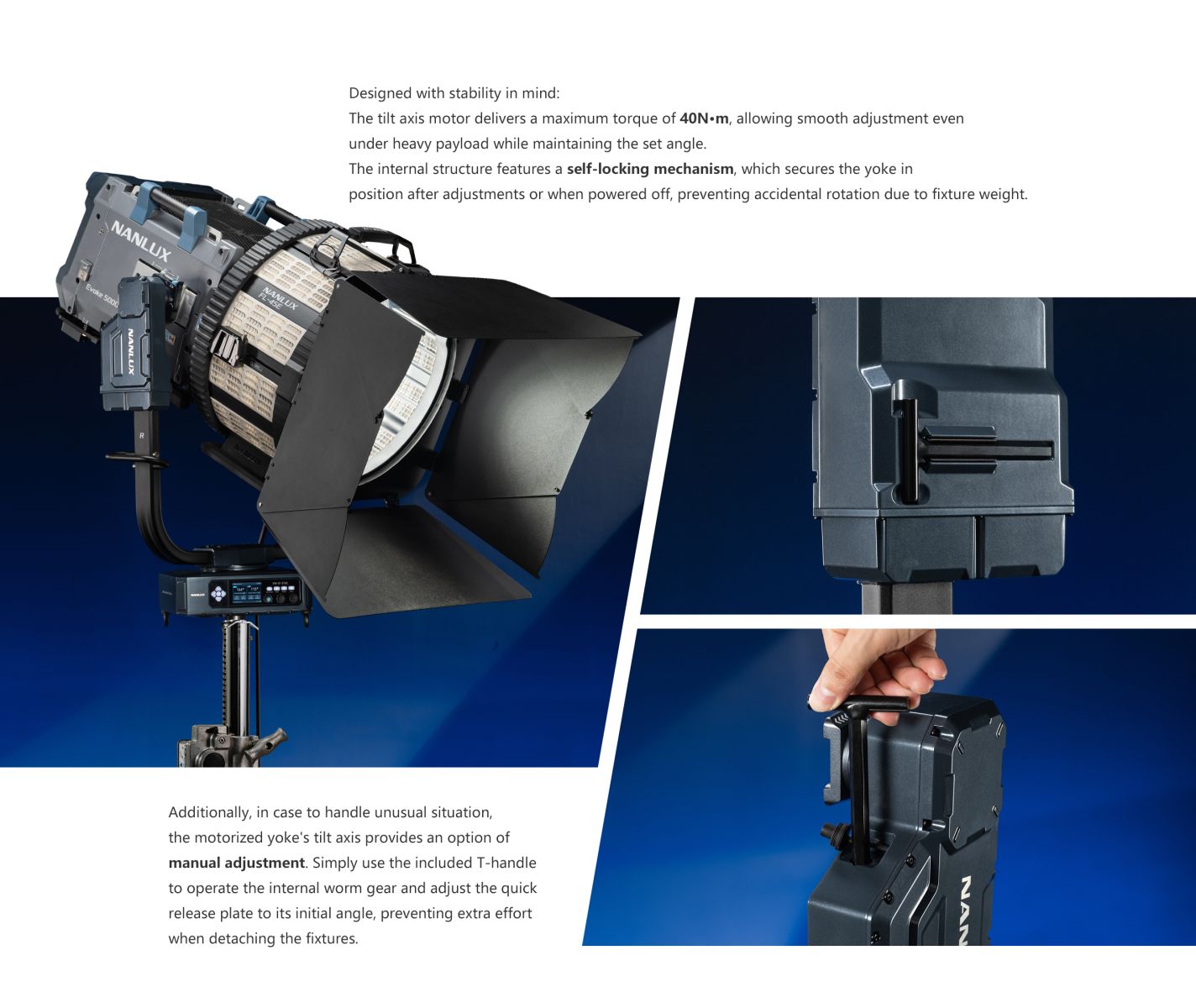

The tilt motor delivers up to 40 N·m of torque, enabling stable and precise angle adjustments even under heavy loads. An integrated self-locking mechanism secures the fixture in position after adjustment or when powered off, preventing unintended movement.

For added security in unusual situations, the tilt axis also supports manual adjustment using the included T-handle, allowing controlled repositioning if required.

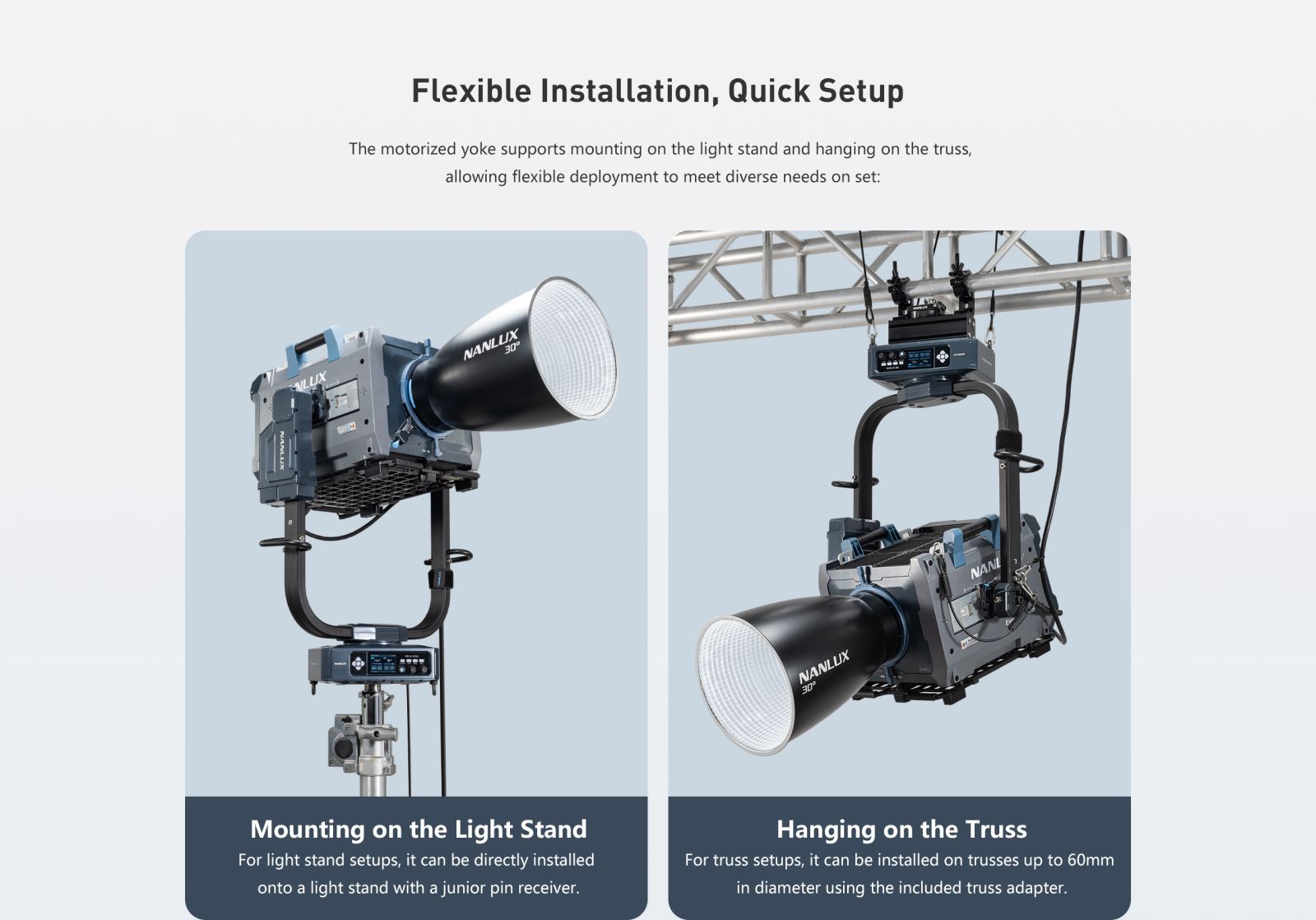

Flexible Mounting & Quick Installation

The Motorized Yoke-L supports both:

  • Light stand mounting via a junior pin receiver

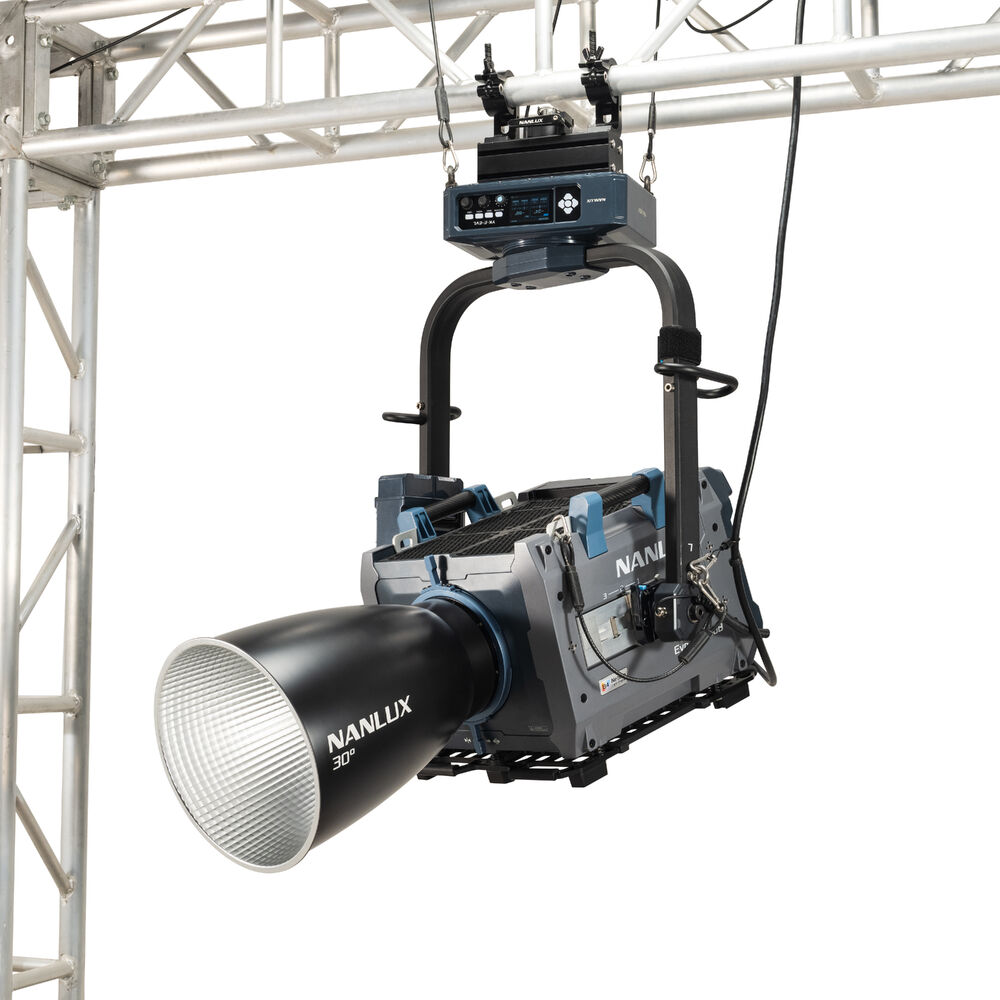

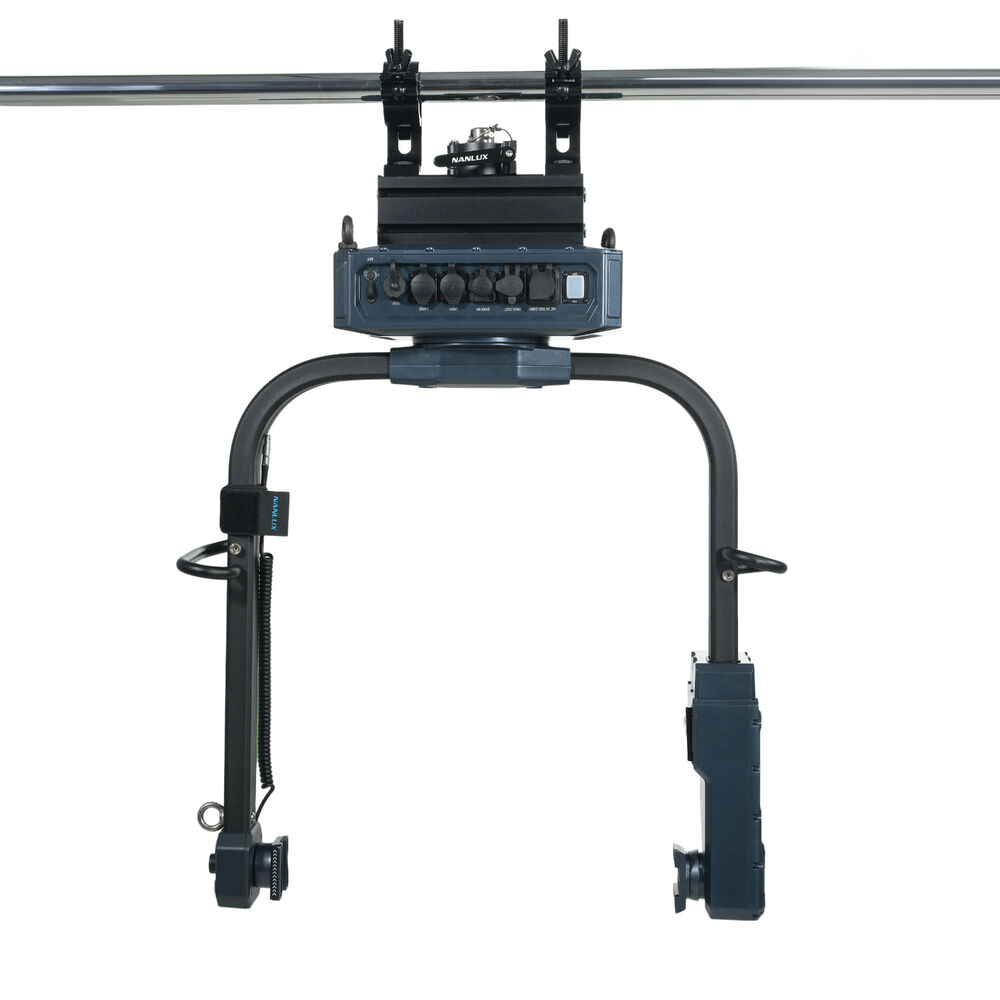

  • Truss mounting (up to 60 mm diameter) using the included truss adapter

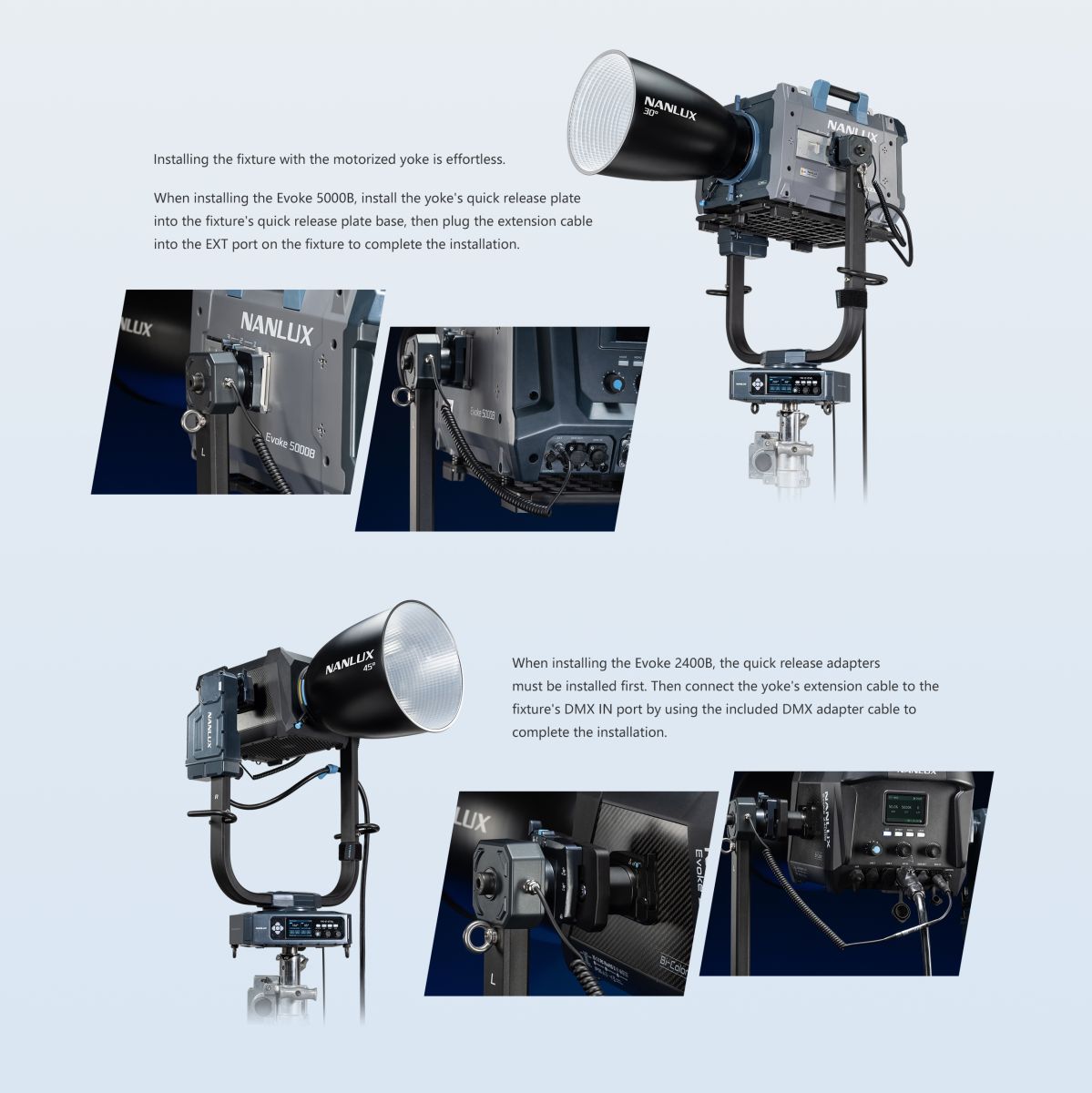

Installation is streamlined:

  • Evoke 5000B: Insert the yoke’s quick-release plate into the fixture base and connect the extension cable to the EXT port.

  • Evoke 2400B: Install the included quick-release adapters, then connect via the supplied DMX adapter cable to the DMX IN port.

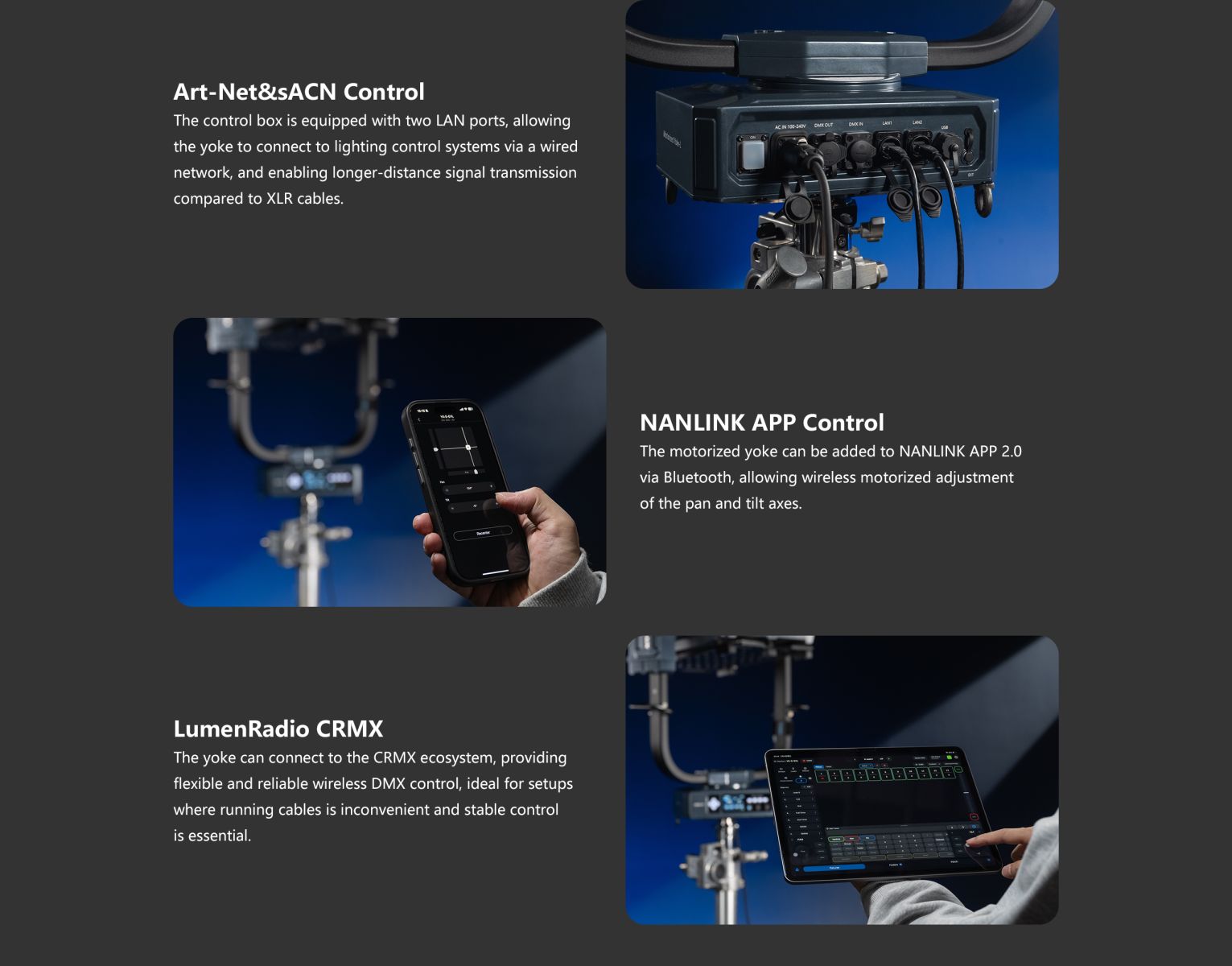

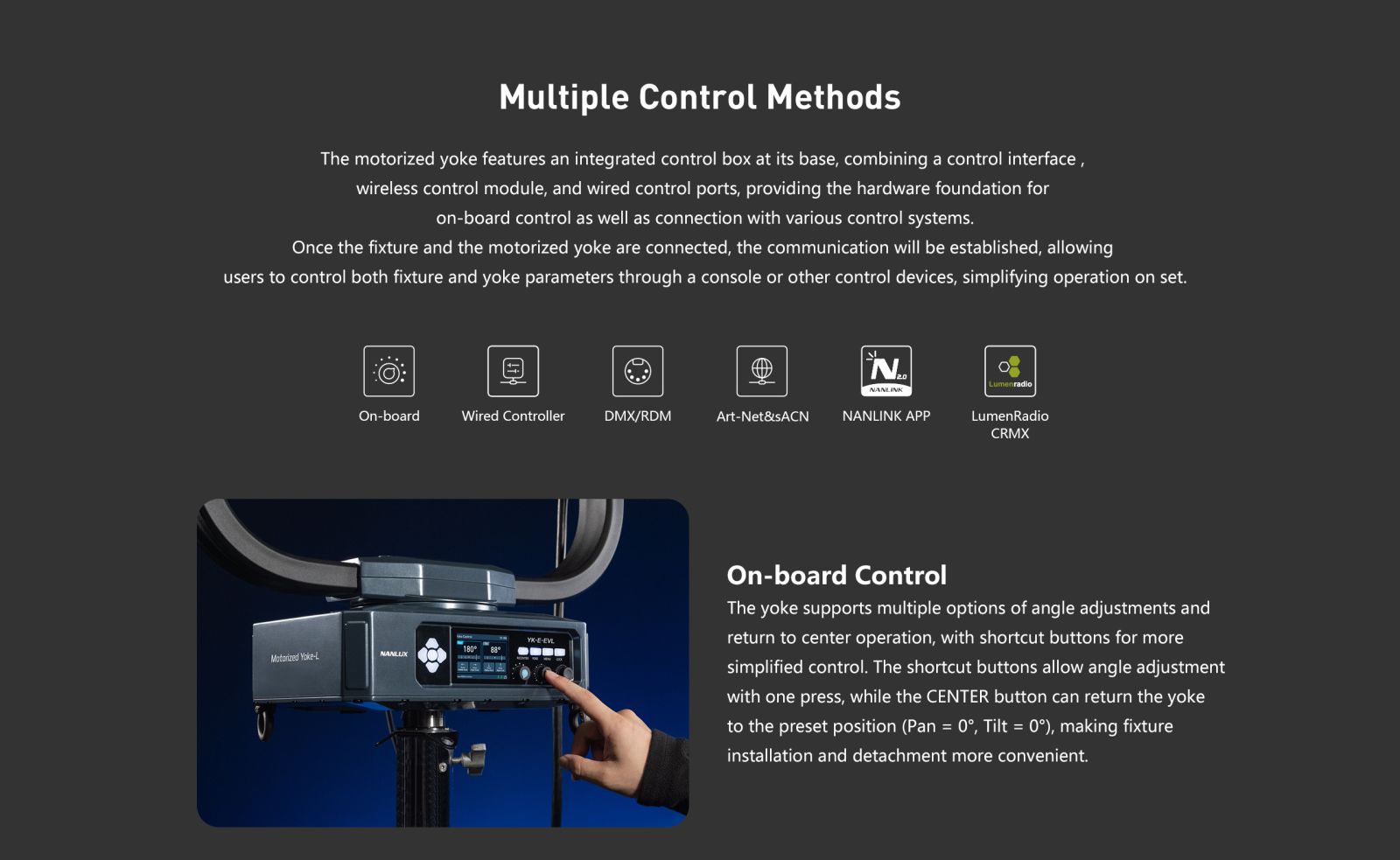

Comprehensive Control Options

An integrated control box at the base combines onboard controls, wireless modules, and wired connectivity for maximum flexibility on set.

Control Methods Include:

  • On-board control with shortcut buttons and one-touch “Return to Center” (Pan 0° / Tilt 0°)

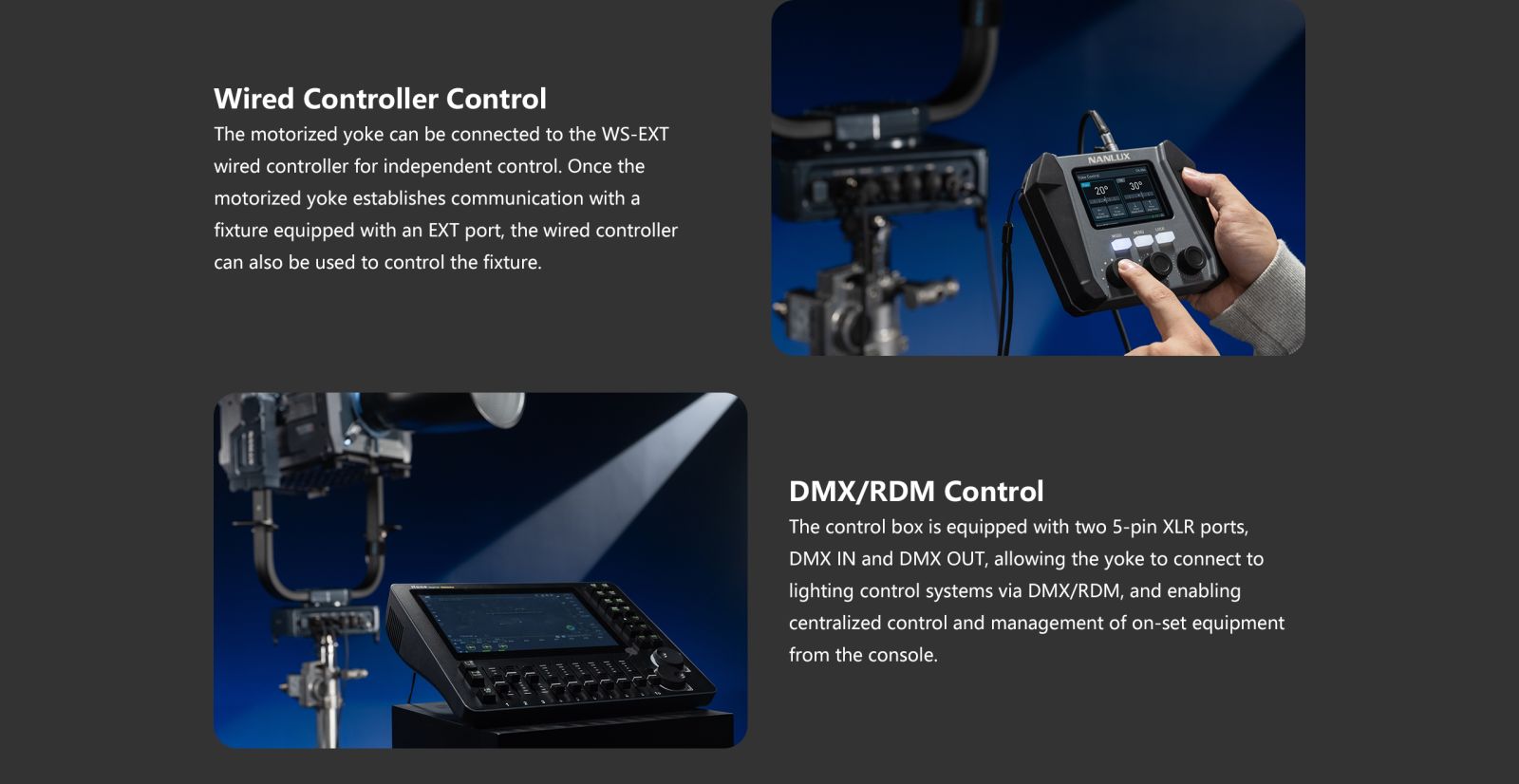

  • WS-EXT Wired Controller compatibility

  • DMX/RDM (5-pin XLR IN/OUT)

  • Art-Net & sACN via dual LAN ports

  • NANLINK App 2.0 (Bluetooth)

  • LumenRadio CRMX wireless DMX

Once connected to a compatible Evoke fixture, users can control both fixture and yoke parameters through consoles or supported control systems, simplifying overall workflow.

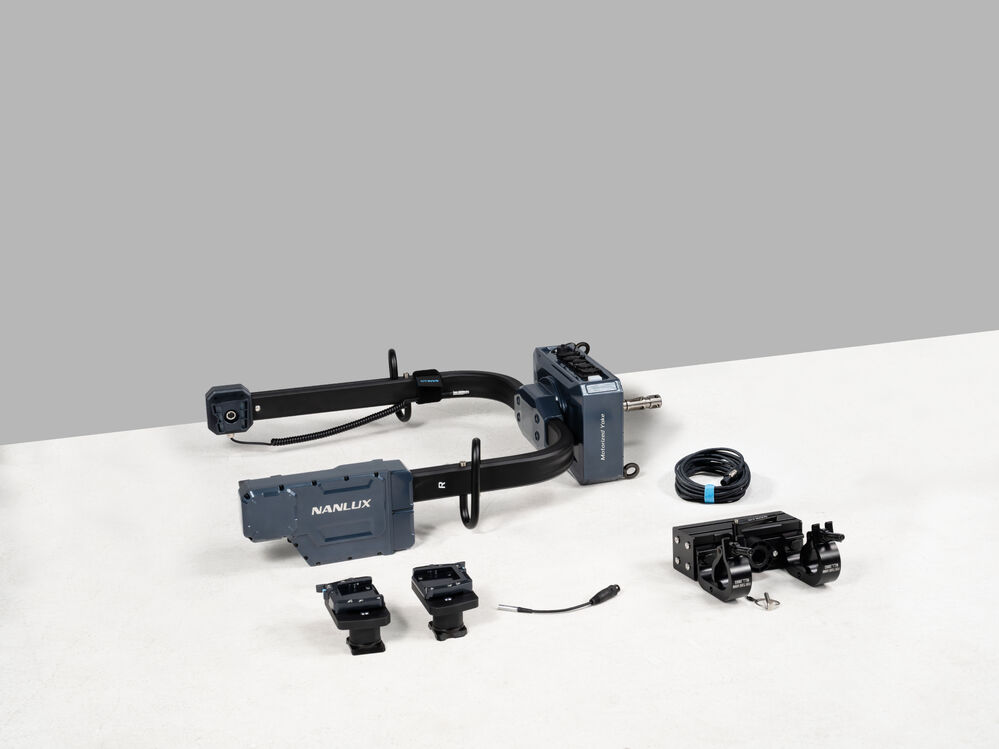

In the Box

  • Motorized Yoke-L ×1

  • 7.5 m AC Power Cable ×1

  • Evoke 2400B Quick-Release Adapter (Left) ×1

  • Evoke 2400B Quick-Release Adapter (Right) ×1

  • Evoke 2400B DMX Adapter Cable ×1

  • Motorized Yoke Truss Adapter ×1

  • User Manual ×1



Technical Specifications



Model

YK-E-EVL (Motorized Yoke-L)



Compatibility

Nanlux Evoke 5000B

Nanlux Evoke 2400B

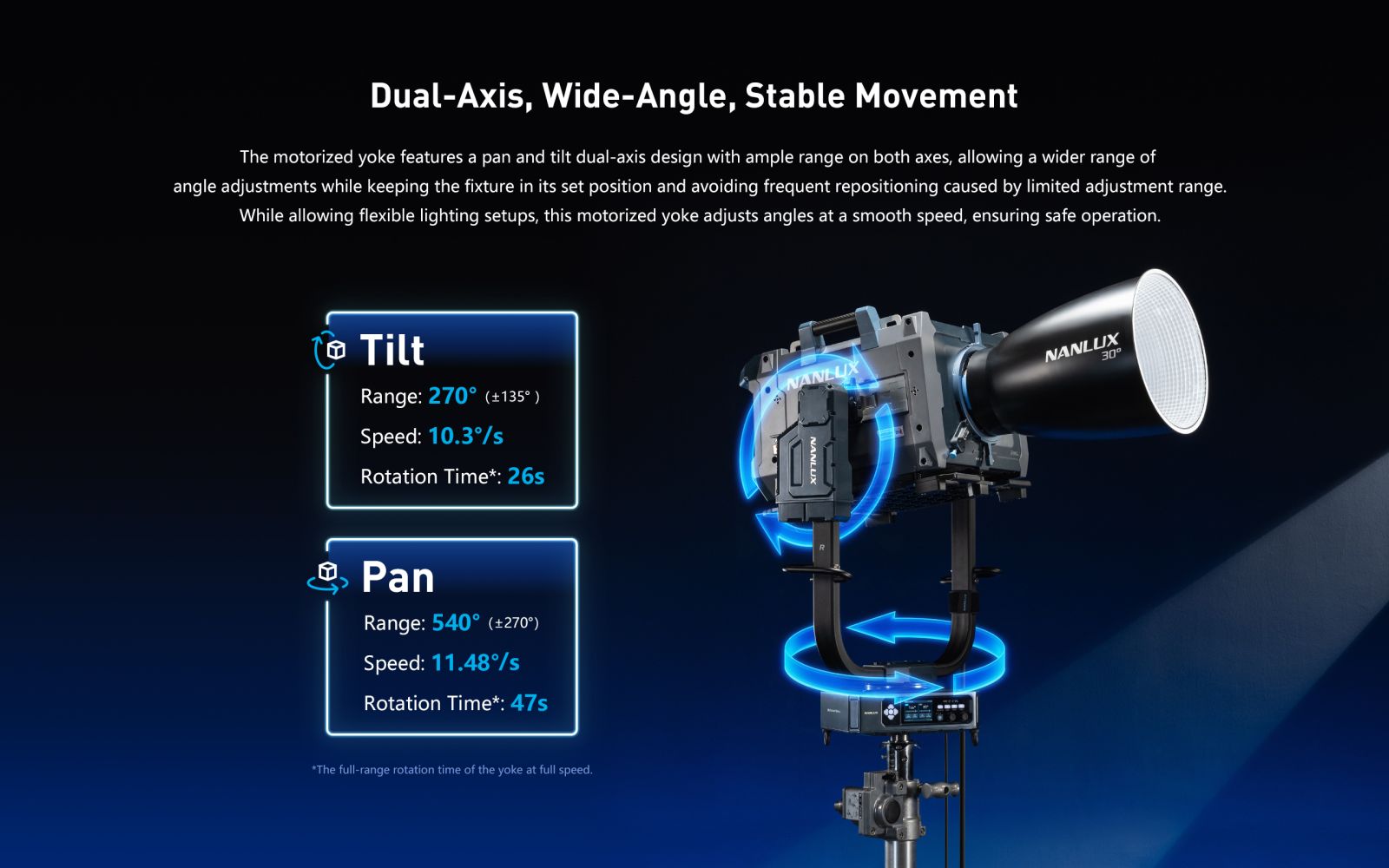

Pan / Tilt Movement

Dual-axis motorised pan and tilt

Wide-angle adjustment range

Return-to-centre function (Pan 0° / Tilt 0°)



Tilt Motor Torque

Maximum 40 N·m



Control Methods

On-board control with shortcut buttons

WS-EXT Wired Controller

DMX/RDM (5-pin XLR IN/OUT)

Art-Net & sACN (Dual LAN ports)

NANLINK App 2.0 (Bluetooth)

LumenRadio CRMX

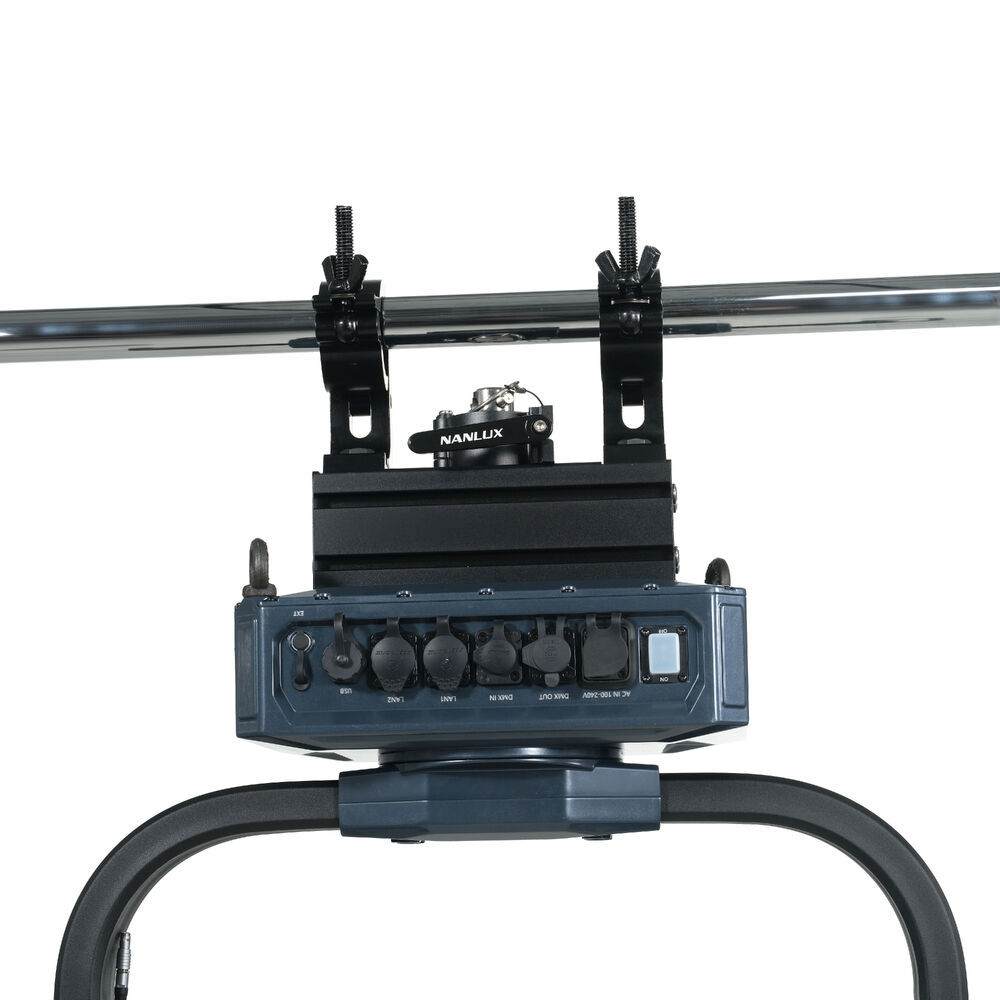

Connectivity Ports

DMX IN (5-pin XLR)

DMX OUT (5-pin XLR)

LAN ×2

EXT connection (fixture dependent)



Mounting Options

Junior pin receiver (light stand mounting)

Truss mounting (supports truss diameter up to 60 mm)

Construction Material

Magnesium alloy

IP Rating

IP66 (dustproof and weather-resistant)

Manual Override

Tilt-axis manual adjustment via included T-handle

Included Accessories

7.5 m AC Power Cable

Evoke 2400B Quick-Release Adapters (Left & Right)

Evoke 2400B DMX Adapter Cable

Motorized Yoke Truss Adapter

(NLYKEEVL)

SKU NLYKEEVL
Barcode # 6949987492610
Brand Nanlux
Shipping Weight 23.0000kg
Shipping Width 0.965m
Shipping Height 0.310m
Shipping Length 0.720m
Shipping Cubic 0.215388000m3
