We will update this page as new firmware for JInbei Flash heads and triggers is released.
LATEST (2021) TR-Q7 FIRMWARE
To determine which firmware to use, find your serial number on the back of your trigger, as shown in this image:
If your serial number starts with TRQ7 then you have v1 hardware and you want v1.2 firmware, click here
If your serial number starts with NTRQ7 then you have v2 hardware and you want v2.0 firmware, click here
If you install v2 firmware on v1 hardware, your TRQ7 will not turn on. Reinstall v1.2 firmware to restore functionality.
To unlock the new features enabled by the TR-Q7 trigger, please ensure you have the latest firmware on your Jinbei flash heads, available from the links below:
HD610PRO
MSN TTL 400/600/800 V3.1 (January 2020)
As with the TR-Q6, the TR-Q7 wireless trigger provides built-in Bluetooth capability for smartphone APP control of the flash system with Android and iOS. Download the Jinbei iOS APP Download the Jinbei Android App
** For updating of flash light heads we recommend using a Window PC machine to load the firmware. Often Mac machines will not load the file to the head.
We have prepared a video to show you how to install the firmware to your Jinbei Flash:
June 2019 - HD610 V5.0 and 6.0 adds support for new features of the TR-Q7 trigger
Adds support for the Nikon D850 camera click here
This firmware adds support for the Fuji TR-Q6 trigger and various bug fixes. There are two versions, choose based on your HD-610 serial number:
Serial number HD610XXXXXXX click here
Serial number HD610ZXXXXXX click here
Please Note: Most current Australian distributed HD610 stock can be updated on any operating system. If your purchase was in Mid 2017 or before, it will need to be updated via a Windows 7 or earlier operating system. If you need to upgrade your firmware and don't have access to an older Windows machine, please contact us on enquires@protog.com.au
Please Note: Stock HD610 units purchased before June 2017 will need to be updated via a Windows 7 or earlier operating systems. From Mid 2017 onwards firmware can be upgraded via any operating system. If you need to upgrade your firmware and don't have access to a Win 7 machine, please contact us on enquires@protog.com.au

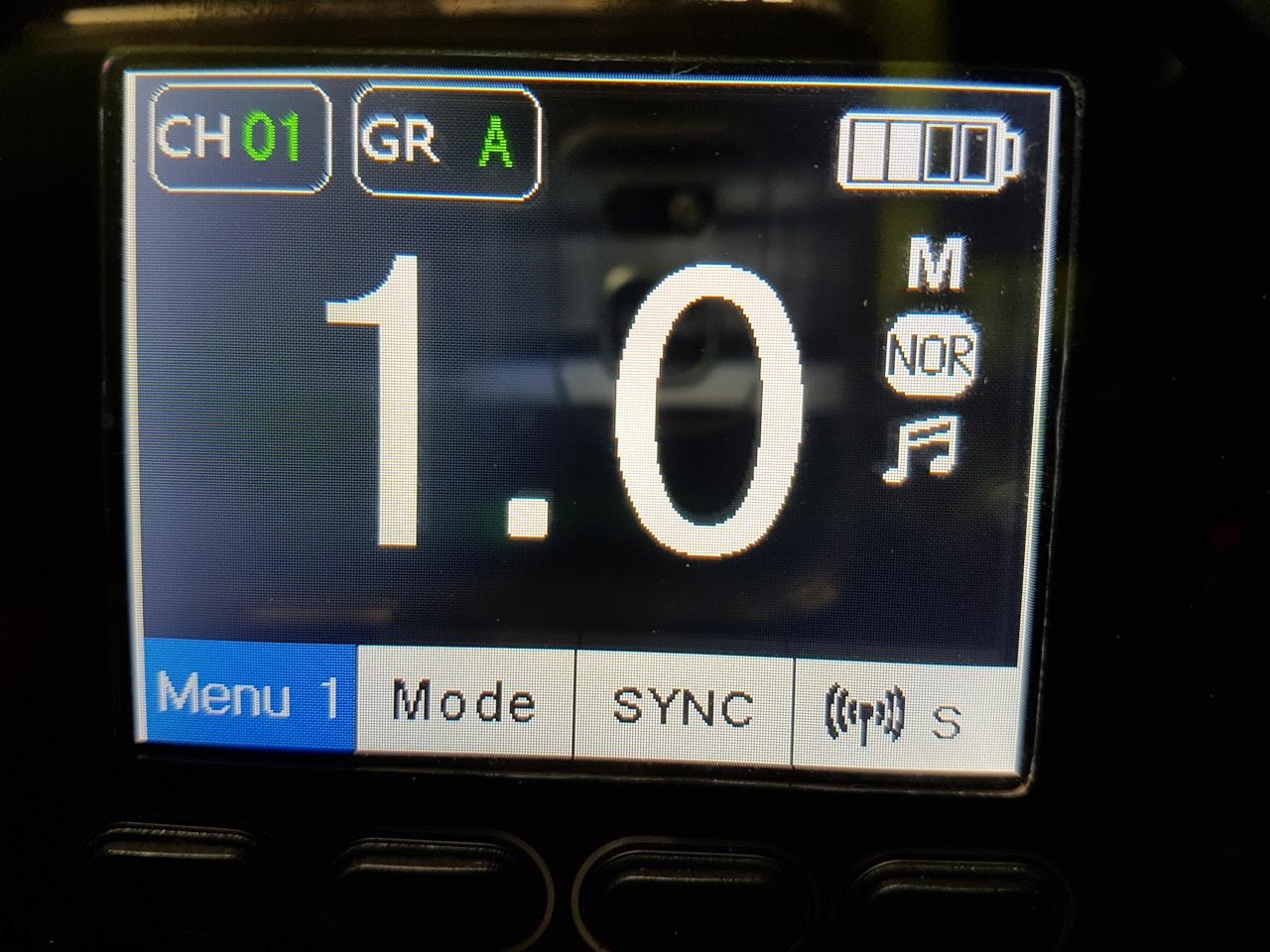

The June 2017 HD-610 Firmware adds support for Sony TTL and adds two new menu’s.
The Sony firmware supports all current A7 models and the A6 series corp sensor cameras, such as the A6600.

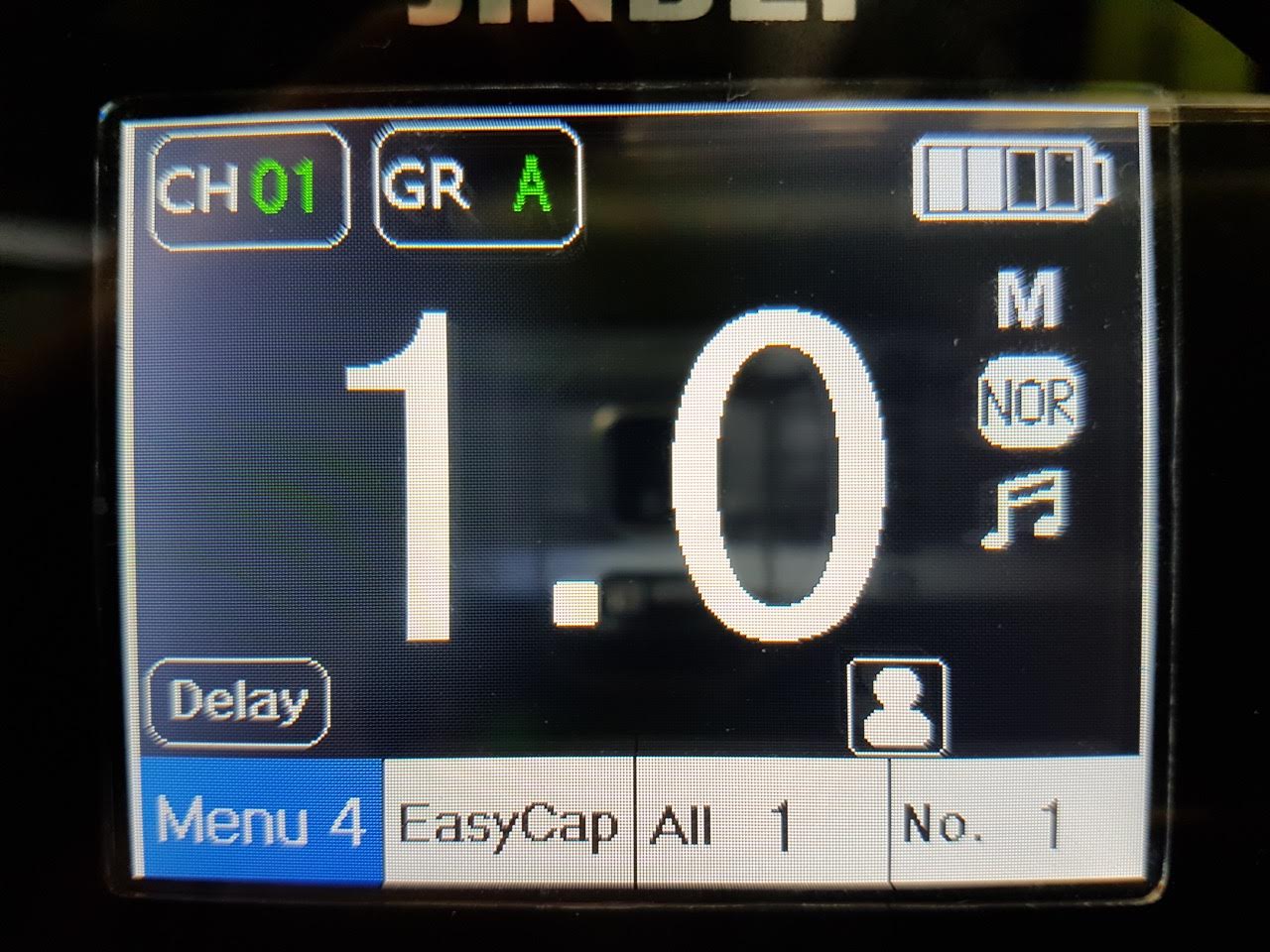

Menu 4 is for a Easy Capture mode. This is for creating Photoshop masks by taking a shot with rear lights only enabled, and the second shot with all lights enabled.

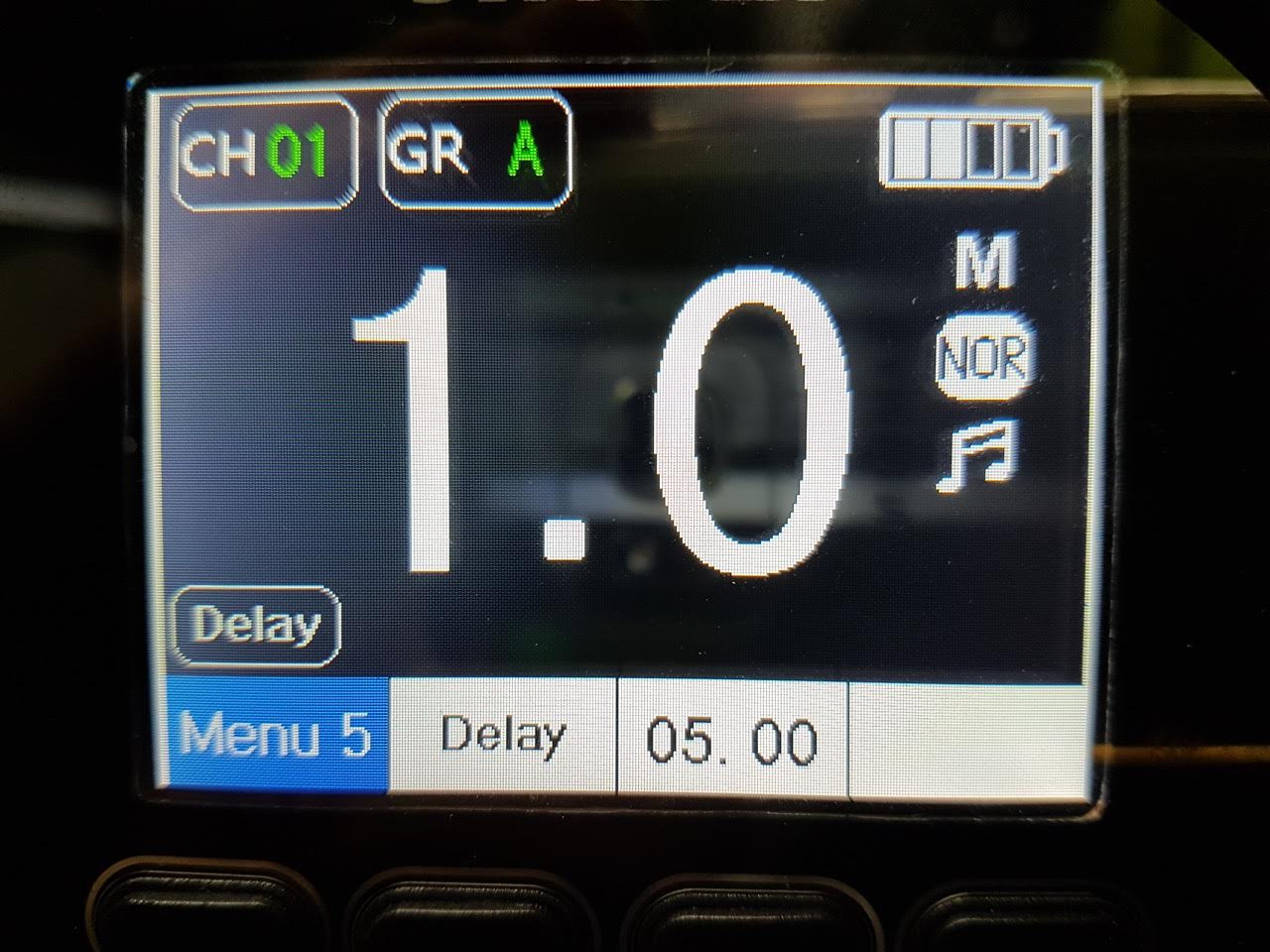

Menu 5 has a delay function from 100th of a second up 99 seconds
To upgrade the firmware on older HD-610 stock you must use a Windows 7 or earlier computer. New production heads after July 2017 will upgrade via any Windows or Mac computer.
** For updating of flash light heads we recommend using a Window PC machine to load the firmware. Often Mac machines will not load the file to the head.
June 2019 MARS3 and MARS3PRO RT V3.0 adds support for new features of the TR-Q7 trigger
This firmware adds support for the Fuji TR-Q6 trigger.
Adds support for Sony TTL, Menu 4 and Menu 5.
All Mars can be updated on any PC.
** For updating of flash light heads we recommend using a Window PC machine to load the firmware. Often Mac machines will not load the file to the head.
June 2019 HD601 v3.0 adds support for new features with the TR-Q7 trigger
Adds support for the TR-Q6 Fuji trigger
June 2019 MSN TTL 400/600/800 V3.0
June 2019 MSN 3 400/600/800 V3.0
** For updating of flash light heads we recommend using a Window PC machine to load the firmware. Often Mac machines will not load the file to the head.
ALL CURRENT (2021) TR-Q6 C/N/S/F FIRMWARE ARE AVAILABLE HERE
Adds support for the Nikon D850 camera click here
1. Place batteries into the transmitter
2. Turn off the TR-611C.
3. Connect the TR611 to the PC using a Micro-USB cable
4. Turn on the TR-611C
5. Find the TR611C window on the PC
6 Drag the .bin file (available below) to the TR611. Do NOT change the file name
7. Turn off the TR-611C
8. Disconnect the Micro USB cable. The firmware update is complete.
Note: Early batches of the TR-611C will need a Windows 7 or earlier PC to do the firmware update. Later models can use Windows 8 or later, or a Mac.
1. Place batteries into the transmitter
2. Turn off the TR612N.
3. Connect the TR612N to the PC using a Micro-USB cable
4. Turn on the TR612N
5. Find the TR612N window on the PC
6 Drag the .bin file (available below) to the TR612N. Do NOT change the file name
7. Turn off the TR-612N
8. Disconnect the Micro USB cable. The firmware update is complete.
Note: Early batches of the TR-612N will need a Windows 7 or earlier PC to do the firmware update. Later models can use Windows 8 or later, or a Mac.
To use your new TRQ7 trigger, you need to upgrade the firmware on your had: HD610, HD601, HD400, MARS, or MSN head, any of the [Jinbei later heads. You need to download the firmware from the Golden Shell or from the PROtog site. We'll include a link on the video and have that ready to go. First thing we do is plug in the head and you'll see that it will come up as a hard drive. PC will be the same. This is a Mac. And we open up that and you'll see that it's just an empty hard drive... or seen as an empty hard drive. We drag the firmware onto there, takes about four or five seconds and it's loaded, unplug and then we can replace the battery.
Turn the unit on and we have a new firmware version on this head. It's the V6.0 RT, it's an RT head. Okay. Now in menu one we go through the wireless signal and we have an extra setting called TTL all. We also have Canon, Nikon, Sony, Fuji, and channel and group control for normal old style Jinbei triggers. But we come back to TTL all. The TTL All is the new receiving setting for the TRQ7. Everything is controlled through TTL All. The other added feature now that we've got the version six firmware is in the second menu. We've got in the RT unit, there is an ID setting, and holding that down we enable Canon RT.
