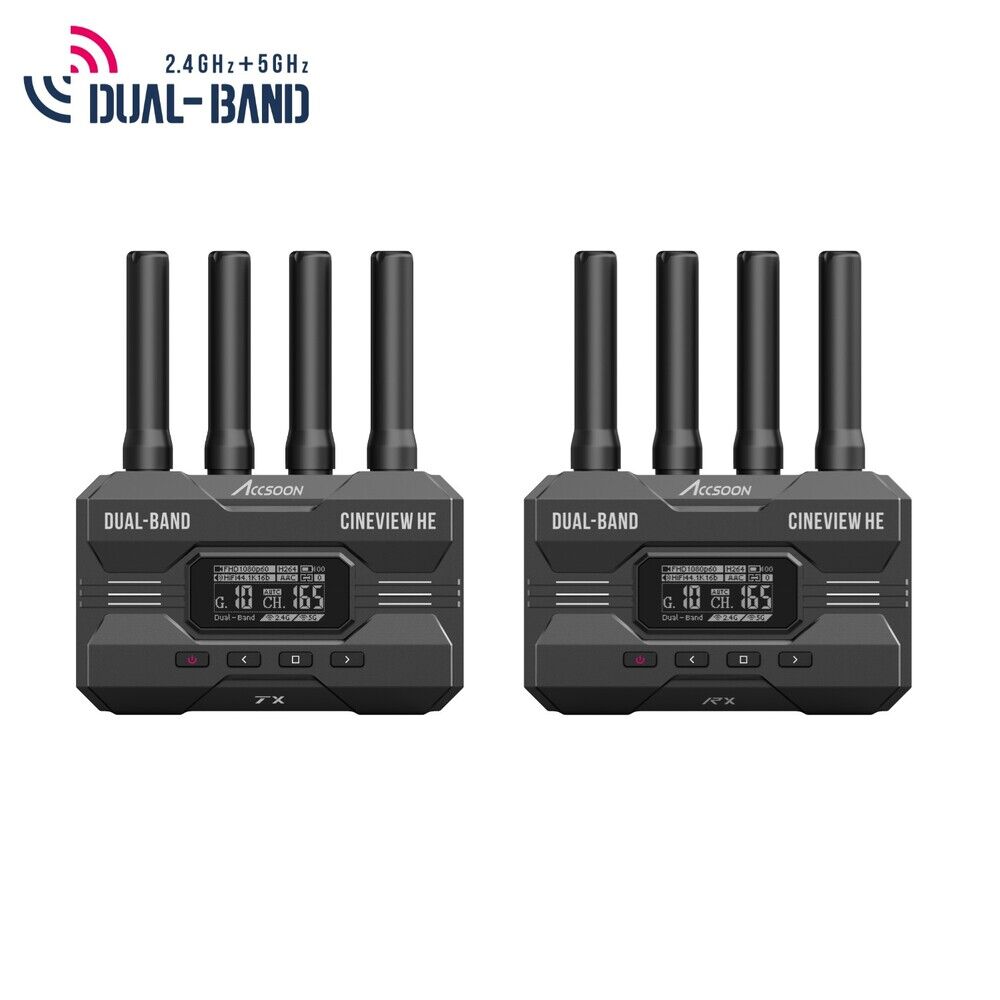

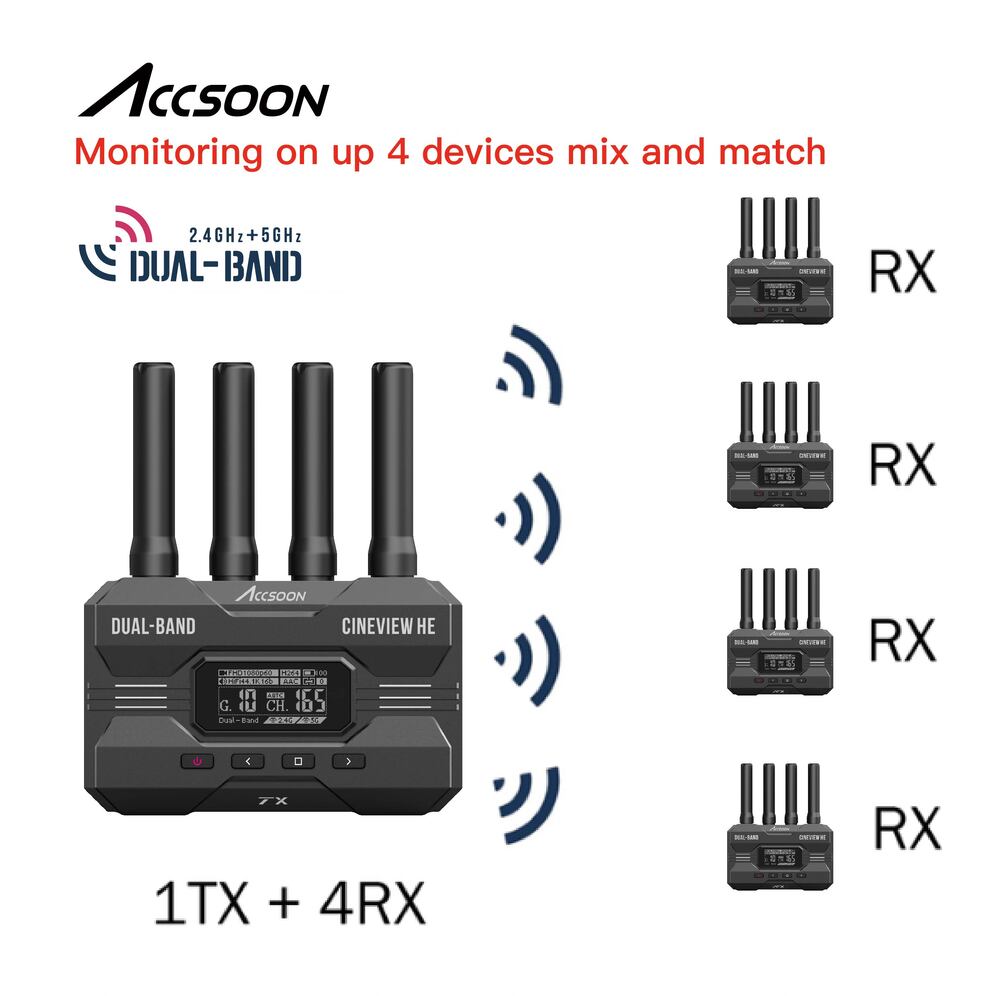

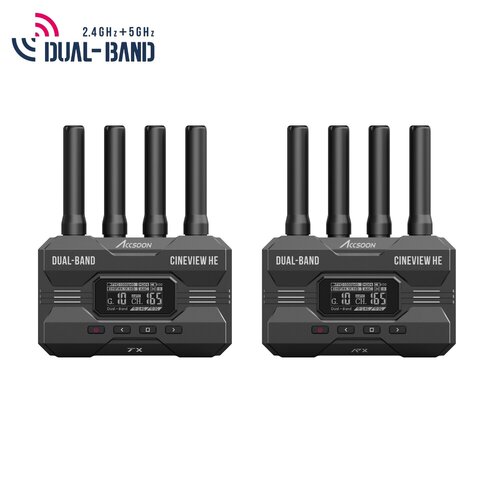

he CineView HE Multi-Spectrum Wireless Video Transmission System from Accsoon allows you to send a 1080p60 camera signal to the included receiver plus up to three mobile devices. This versatile wireless video transmission system provides a cost-effective way of allowing four people on set to monitor an HDMI camera signal. The transmitter can send signal to a total of four devices simultaneously over distances up to 1200' with only a 60ms delay. You can transmit to any mix of up to four receivers and iOS/Android smartphones and tablets using dual-band wireless signals.
The included dedicated receiver is easy to set up and pair, and it features an HDMI output and a USB UVC output to output your signal to a computer for streaming using third-party apps. The free-to-download companion app provides image tools such as peaking, zebras, false color for exposure, and .cube 3D LUT overlay. The transmitter and receiver feature DC and USB-C power inputs, and they also support an optional L-series battery that can power the set for up to 12 hours.
| CineView SE | CineView HE | CineView Quad | CineView Nano | |
|---|---|---|---|---|
| Latency | <50ms | <60ms | <60ms | <60ms |
| Range | 1200ft | 1200ft | 500ft | 500ft |
| Input&Output | SDI IN&OUT HDMI IN&OUT |
HDMI IN&OUT HDMI LOOP OUT UVC Live Streaming |
SDI IN&OUT HDMI IN&OUT |
HDMI IN |
| Antenna | Swappable Antenna* |
Swappable Antenna* |
Built-in Antenna |
Built-in Antenna |
| Powered By | NP-F Battery 7.4-16.8V DC IN 5V USB-C IN |
NP-F Battery 7.4-16.8V DC IN 5V USB-C IN |
NP-F Battery 7.4-16.8V DC IN |
NP-F Battery 5V USB-C IN |
| Dimensions | 105mmx66mmx32mm (Antennas not included) |
105mmx66mmx32mm (Antennas not included) |
105mmx66mmx31mm (Antennas not included) |
76mmx113mmx20mm (Antennas not included) |
| Weight | 210g (Antennas not included) | 200g (Antennas included) | 225g (Antennas included) | 72.3g (Antennas Not Included) |
CineView HE Details
| Projects | Transmitter |
|---|---|
| Video Input | HDMI |
| HDMI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps |
| HDMI Output Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps |
| DC Port | 5.5mmx2.1mm center positive |
| DC Voltage | 7.4~16.8V |
| Audio | 44.1KHz/48KHz 16bit/24bit PCM |
| Latency | <0.06s (Camera latency not included) |
| OLED Display | 1.3inch |
| Transmission Power | 17~20dBm |
| Transmission Range | 1200ft (No obstacles, no interference) |
| Power Consumption | 4.5Watt (Typical) |
| Operating Environment Temperature | -10~40℃ |
| Dimensions | 105mmx66mmx32mm (Antennas not included) |
| Weight | 200g (Antennas included) |
| Projects | Receiver |
|---|---|
| Video Output | HDMI |
| HDMI Output Format | 1080p 24/25/30/50/60fps |
| DC Port | 5.5mmx2.1mm center positive |
| DC Voltage | 7.4~16.8V |
| OLED Display | 1.3inch |
| Power Consumption | 4.2Watt (Typical) |
| Operating Environment Temperature | -10~40℃ |
| Dimensions | 105mmx66mmx32mm (Antennas not included) |
| Weight | 200g (Antennas included) |
(ACWIT04HE)
| SKU | ACWIT04HE |
| Barcode # | 0664918771744 |
| Brand | Accsoon |
| Shipping Weight | 0.8000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
